Product details
|
Watts
|
Size
|
Weight
|
Input
|
Output
|
|
30W
|
135*35*23mm
|
135g
|
100-264V
|
12V(2.5A)24V(1.25A)
|
|
60W
|
170*35*23mm
|
135g
|
100-264V
|
12V(5A)24V(2.5A)
|
|
100W
|
145*48*24mm
|
180g
|
100-264V
|
12V(8.3A)24V(4.17A)
|
|
150W
|
215*48*24mm
|
305g
|
90~130V or 170-264V
|
12V(12.5A)24V(6.25A)
|
|
200W
|
215*48*24mm
|
305g
|
90~130V or 170-264V
|
12V(16.7A)24V(8.3A)
|
|
250W
|
236*48*29mm
|
450g
|
90~130V or 170-264V
|
12V(21A)24V(10.5A)
|
|
300W
|
236*48*29mm
|
450g
|
90~130V or 170-264V
|
12V(25A)24V(12.5A)
|
|
400W
|
236*48*29mm
|
500g
|
90~130V or 170-264V
|
12V(33.3A)24V(16.7A)
|
FAQ

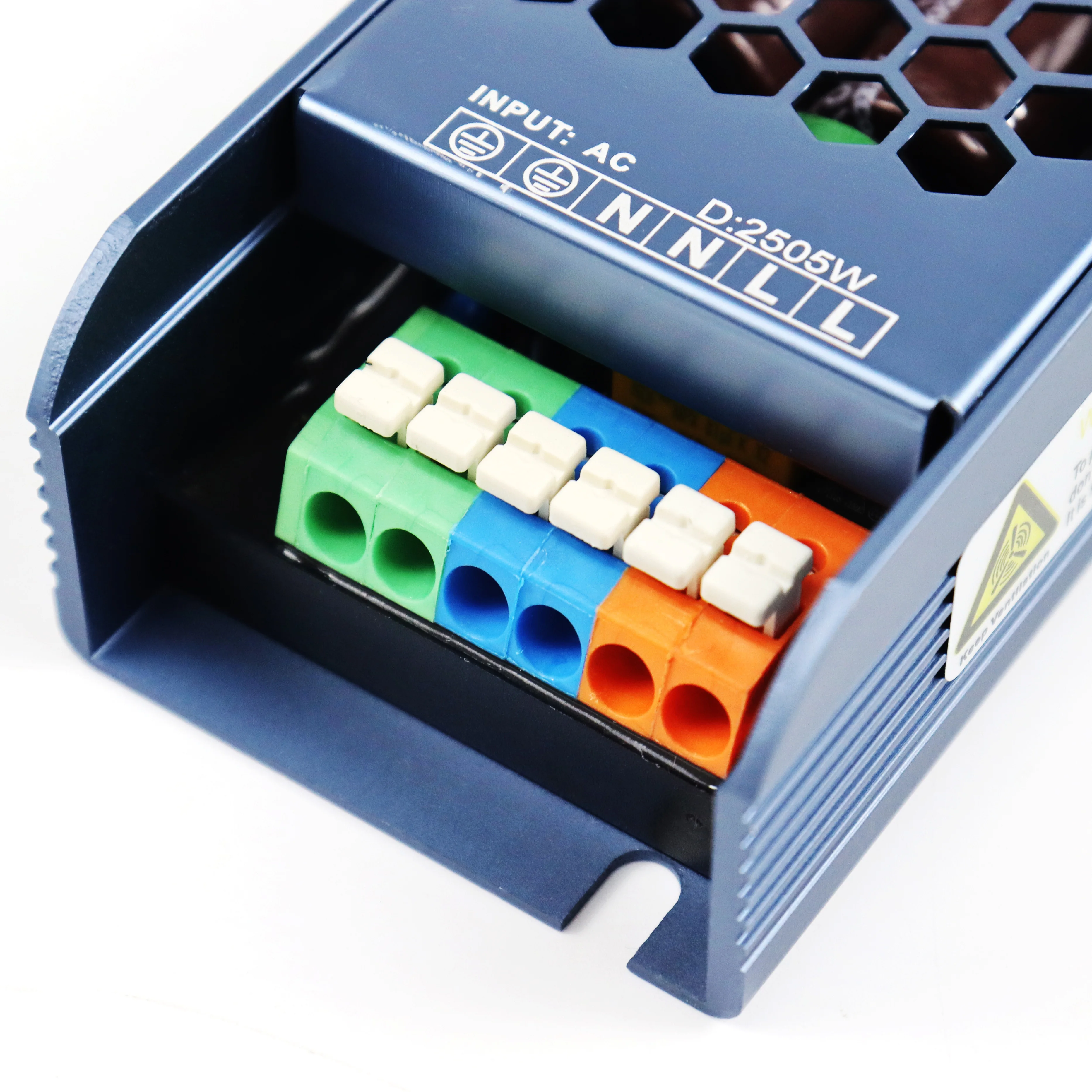

What is the input voltage range of this power supply?
The input voltage depends on the wattage:
For 30W / 60W / 100W: AC 100–264V
For 150W–400W: AC 90–130V or 170–264V (selectable range)
For 150W–400W: AC 90–130V or 170–264V (selectable range)

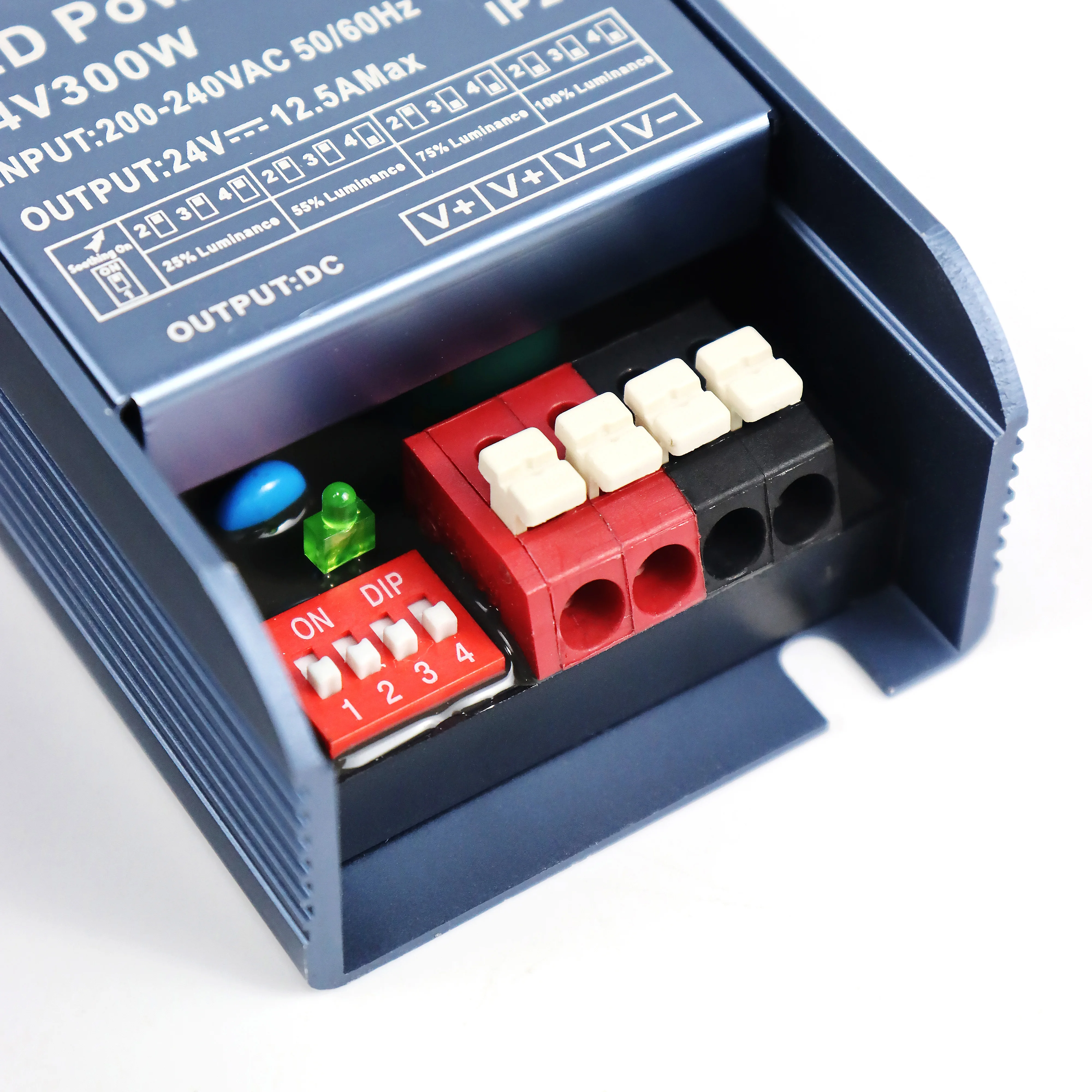

How do I adjust the output voltage or current?
You can adjust the output by using the built-in DIP switch on the power supply. It allows fast and tool-free configuration for
different lighting setups.
different lighting setups.
What output voltages are available?
DC 12V and DC 24V options are available. Please select according to your LED system requirements.

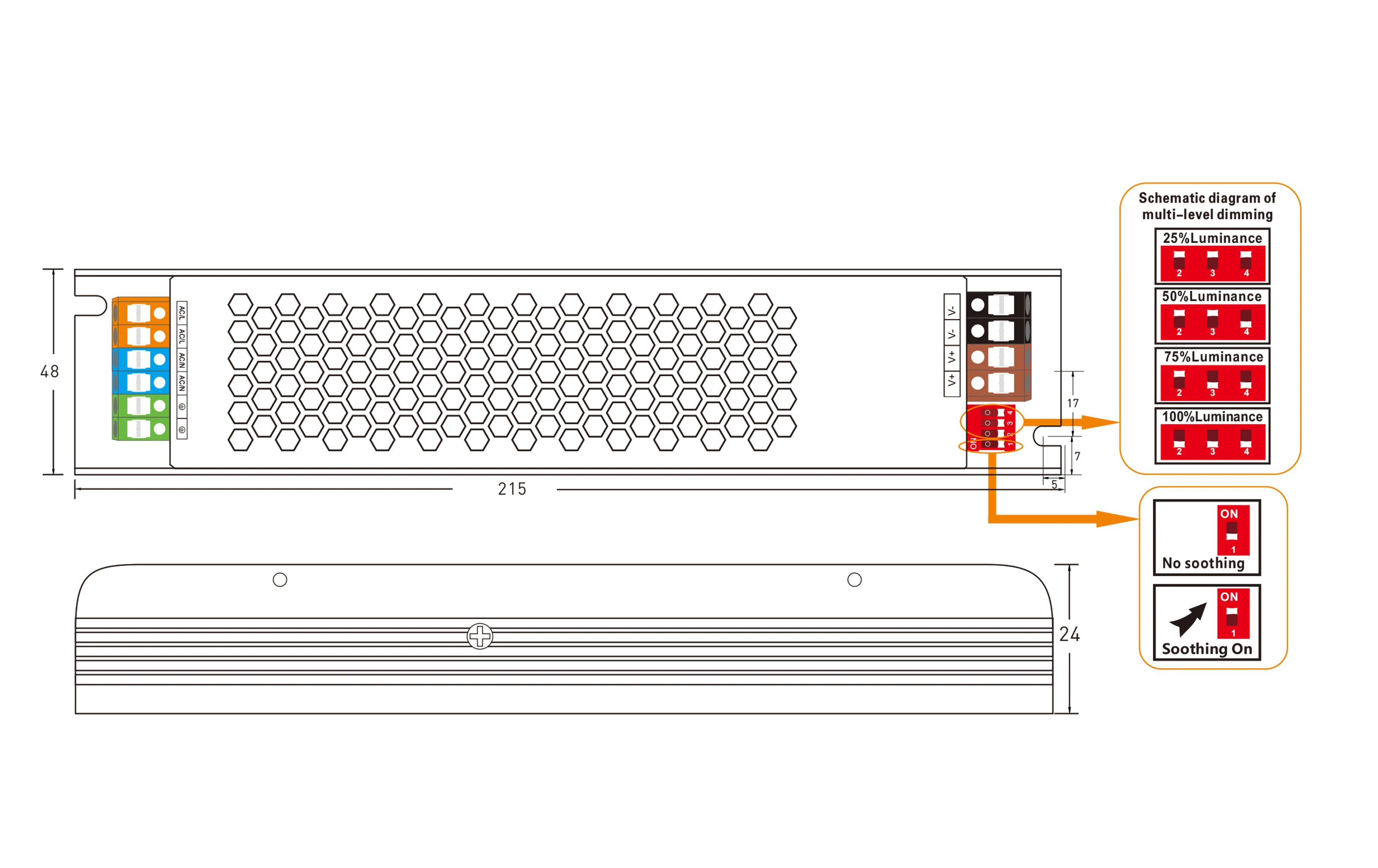

Is this power supply dimmable?
Yes, it supports dimming by adjusting the dial code (DIP switch). Compatible with constant voltage dimmable LED lights.
Is this power supply waterproof?
No, it is IP20 rated and designed for indoor use only. For outdoor or damp environments, please choose a waterproof version.
Does it have safety protection features?
Yes, it comes with built-in protection for overload, overvoltage, overheating, and short-circuit.
Can I order with OEM or ODM customization?
Yes, we offer OEM/ODM services including logo printing, label customization, and private packaging. Contact us for details.
