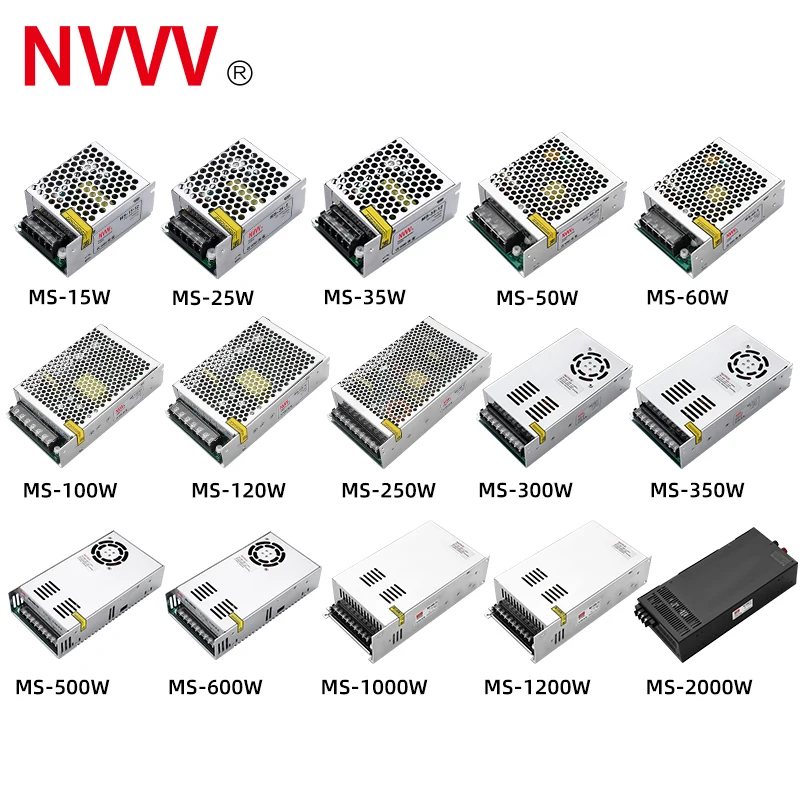

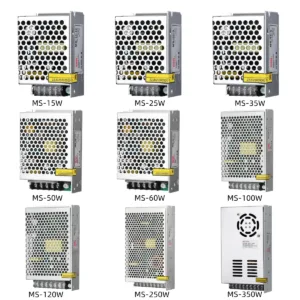

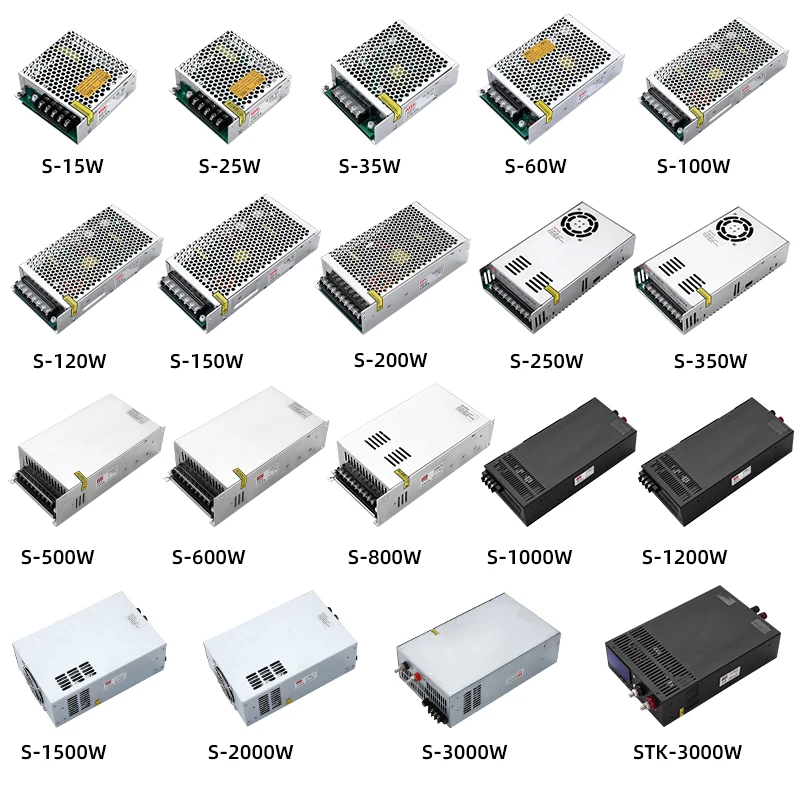

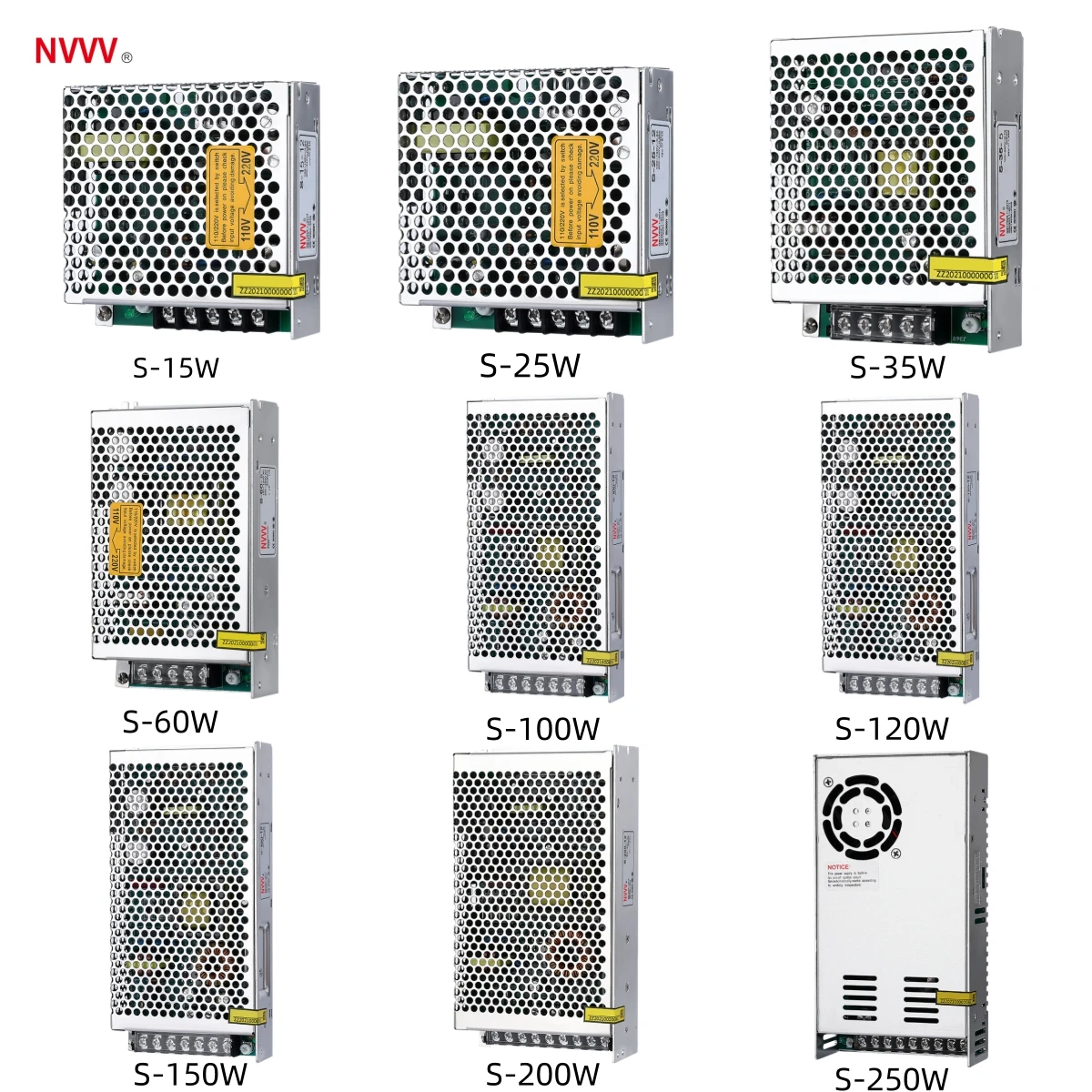

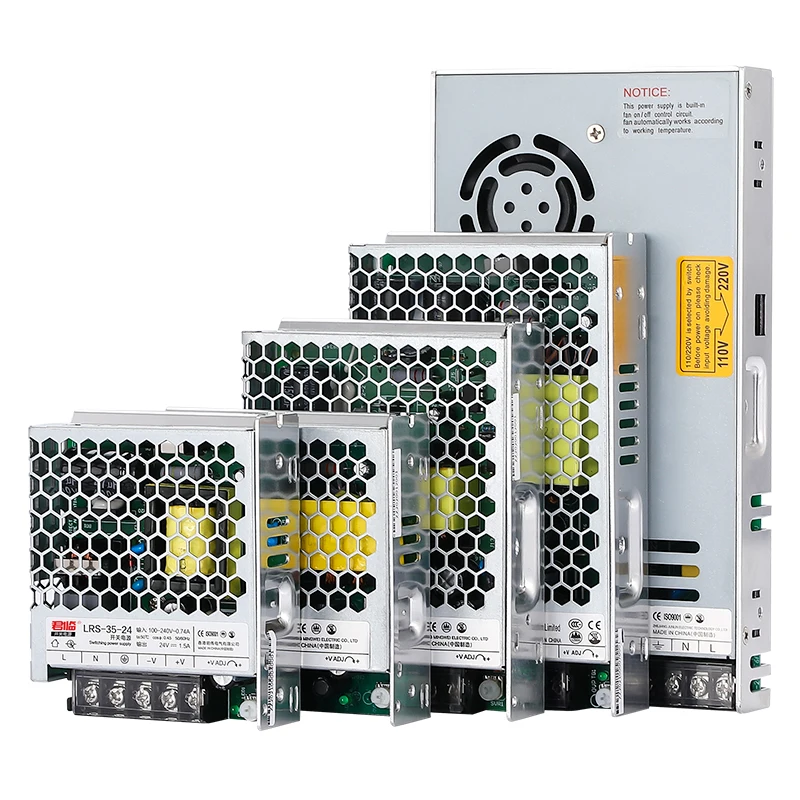

5V Power Supply 12V 24V 36V 48V 15W 25W 35W 50W 60W 75W 100W 120W 200W 250W Switching Power Supply for CCTV Camera and LED Light
$10.00
9 people are viewing this product right now
🔥 6 items sold in last 3 hours
Please, activate Wishlist option to use this widget.
Please, activate Compare option to use this widget.
Product Description
Specification
|
MS-25 25W Switching Power Supply
|
||||||||
|
Project
|
Technical index
|
|||||||
|
Output
|
DC voltage
|
5V
|
12V
|
24V
|
||||
|
Rated current
|
4A
|
2.1A
|
1A
|
|||||
|
Rated power
|
20W
|
25.2W
|
24W
|
|||||
|
Ripple and noise ①
|
＜50mV
|
＜120mV
|
＜150mV
|
|||||
|
Voltage accuracy
|
±2%
|
±1%
|
||||||
|
Output voltage regulation range
|
±10%
|
|||||||
|
Load adjustment rate
|
＜±1.5%
|
＜±0.5%
|
＜±0.5%
|
|||||
|
Linear adjustment rate
|
＜±0.5%
|
|||||||
|
Input
|
Voltage range
|
85-264VAC 47Hz～63Hz (120VDC～370VDC)
|
||||||
|
Efficiency (typical) ②
|
＞78%
|
＞82%
|
＞84%
|
|||||
|
Working current
|
＜0.5A 110VAC ＜0.25A 220VAC
|
|||||||
|
Impulse current
|
110VAC 18A， 220VAC 36A
|
|||||||
|
Start, rise, hold time
|
200ms、50ms、20ms ：220VAC
|
|||||||
|
Protect
|
overload protection
|
≥ 105% – 150% type: constant current output + VO reduced to undervoltage point cut off output reset: power on again
|
||||||
|
Short circuit protection
|
+VODrop to undervoltage point to close output
|
|||||||
|
Environmental
|
Working temperature and humidity
|
-10℃～+50℃；20%～90RH
|
||||||
|
Working temperature and humidity
|
-20℃～+85℃；10%～95RH
|
|||||||
|
Safety
regulations
|
Withstand voltage
|
Input output: 1.5kVac input shell: 1.5kVac output shell: 0.5kvac for 1 minute
|
||||||
|
Leakage current
|
Input output 1.5KVACtime ＜5mA
|
|||||||
|
Leakage current
|
Input output 220VACtime ＜1mA
|
|||||||
|
Isolation resistance
|
Input output，Input – Housing， Output – Housing ：500VDC/100MΩ
|
|||||||
Company Profile
Our Team
Shipping&Delivery
FAQ
Q1:How many Voltage you can supply?
A: 12v , 24v , 48v ,50v , 60v , 110v(Depend on items).
A: 12v , 24v , 48v ,50v , 60v , 110v(Depend on items).
Q2：Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.Mixed samples are acceptable.
A: Yes, we welcome sample order to test and check quality.Mixed samples are acceptable.
Q3：Do you have any MOQ limited for the order?
A: Low MOQ, 1pc for sample checking is available.
A: Low MOQ, 1pc for sample checking is available.
Q4：How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or EMS. It usually takes 3-5 days to
arrive. Airline and sea shipping also optional.
A: We usually ship by DHL, UPS, FedEx or EMS. It usually takes 3-5 days to
arrive. Airline and sea shipping also optional.
Q5：Do you offer guarantee for the products?
A: Yes, we offer warranty to our products.
A: Yes, we offer warranty to our products.
Q6: How to deal with the faulty?
A: Firstly, our products are produced in strict quality control system and the defective rate will be less. Secondly, during the guarantee period,we will send new product with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
A: Firstly, our products are produced in strict quality control system and the defective rate will be less. Secondly, during the guarantee period,we will send new product with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
Reviews
There are no reviews yet.
