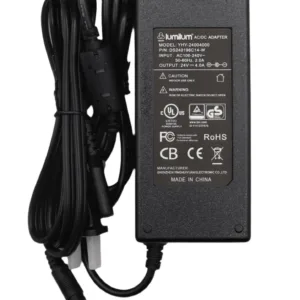

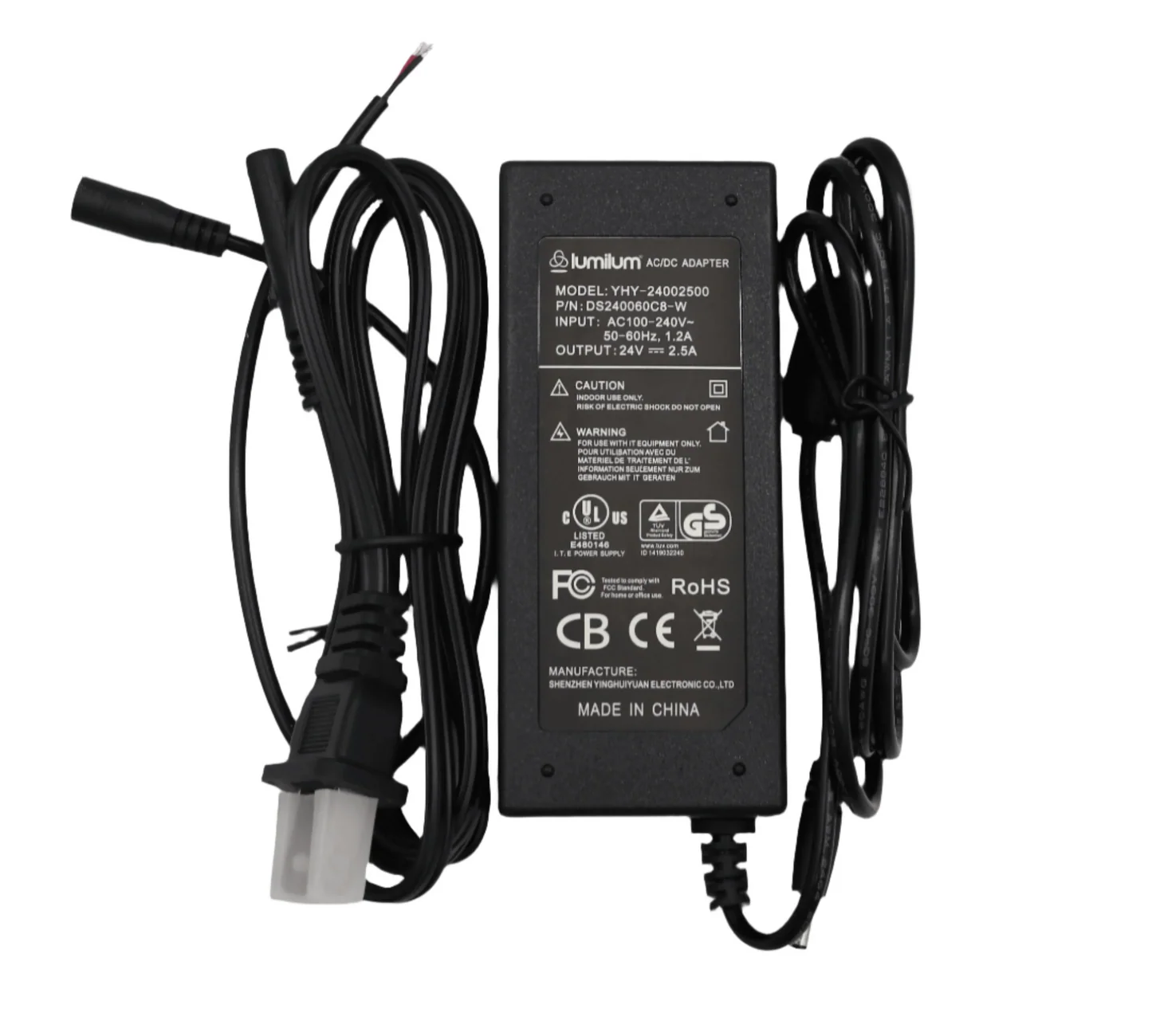

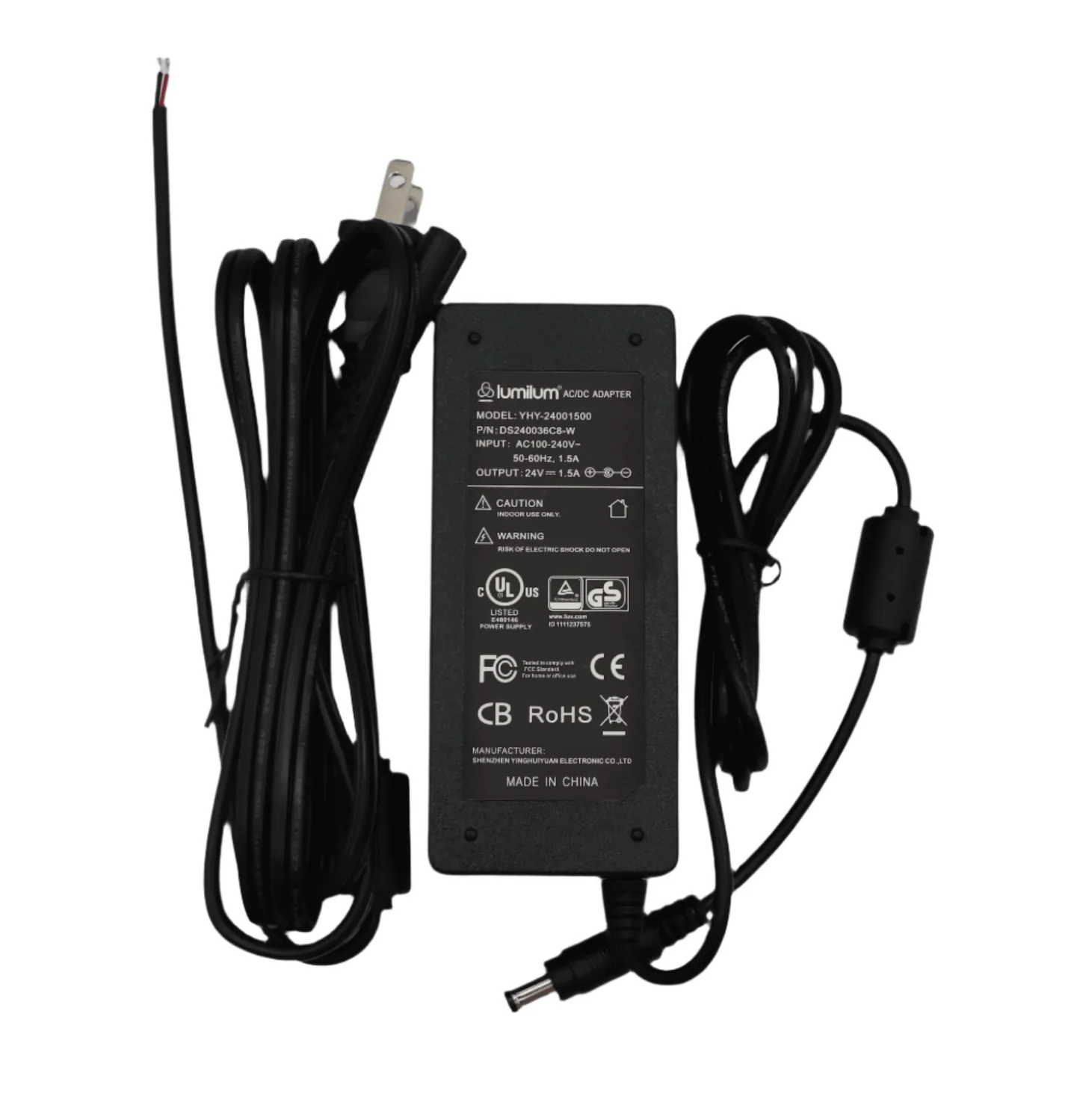

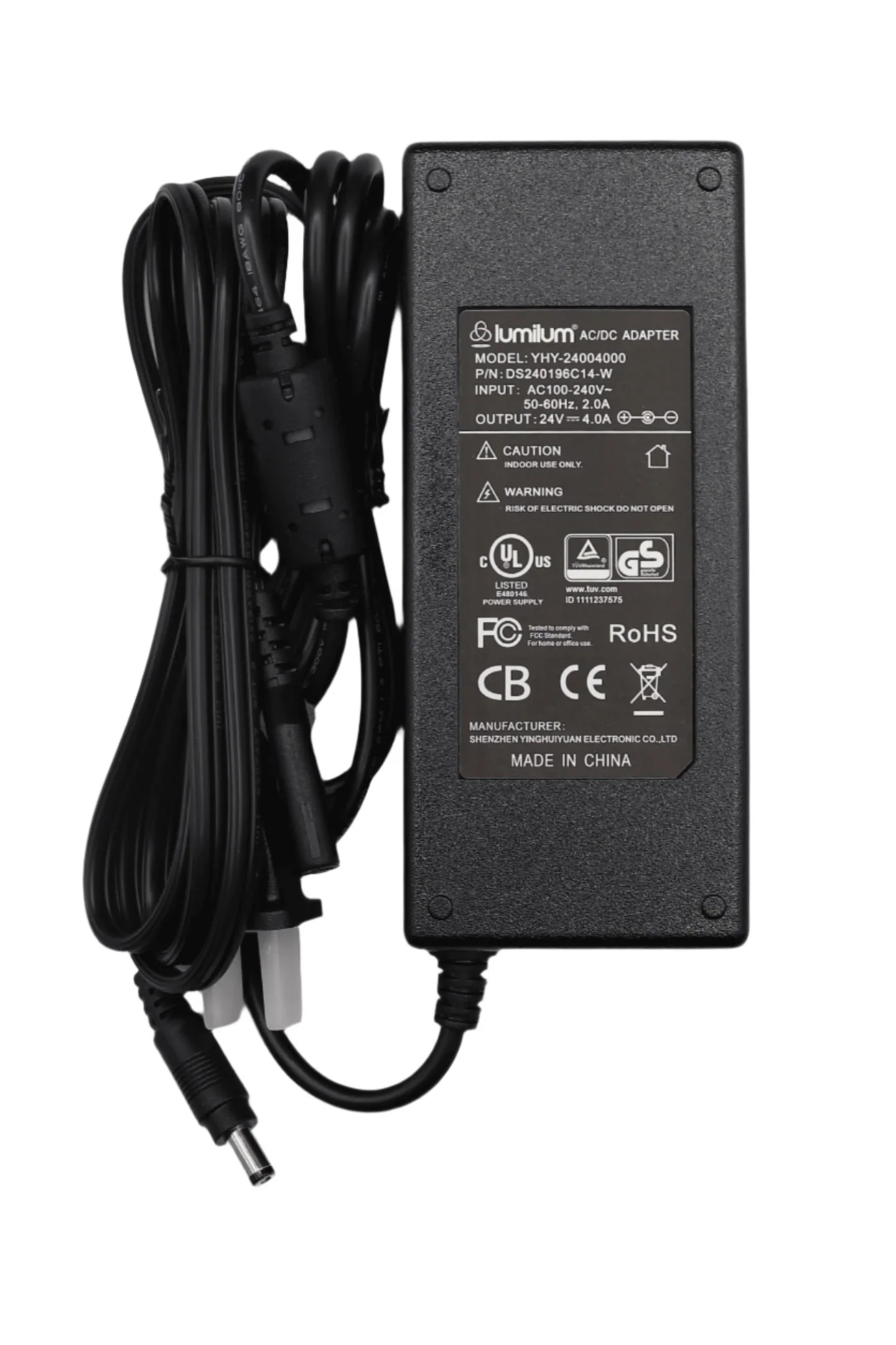

24V LED Light Adapter (Plug In Ready) 36W | 60W | 96W

This low voltage LED power supply provides plug-in ready power for your 24V LED strip light project. This 24V driver is designed for use with Lumilum LED Strip Lights from our IP20 PRO Series, IP54 Silicone Coated Series, and also makes a great accessory for use with our Ultra Flat Under Cabinet Light Bar Series.

Step 1: Determine Total Wattage

Calculate the total wattage of the LED strip lights you plan to use. This is done by multiplying the wattage per foot (or meter) of the strip by the total length you’ll need.

For example, if your strip uses 5 watts per foot and you need 20 feet, the calculation is:

$\text{Total Wattage }=5\text{watts per foot }\times 20\text{feet }=100\text{watts}$

Step 2: Add a Safety Margin

To ensure reliability and prevent overload, it’s wise to add a safety margin of 20% to your total wattage. This means you will need a transformer that can handle:

$\text{Required Transformer Capacity }=\text{Total Wattage }\times 1.2,\; so100\text{watts }\times 1.2=120\text{watts}$

Therefore, in this example, you should select a transformer with at least 120 watts capacity.

*Example: a 16.4ft strip is 50 watts x 1.2 = 60 watt driver is needed
